RedMax Zero Turn Mowers CZT60x

Name: RedMax Zero Turn Mowers CZT60x
Brand: RedMax
Availability: OutOfStock

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

The Redmax CZTx series was designed with commercial landscapers in mind. With a focus on commercial engines, heavy duty Integrated drive systems, cast iron components, heavy gauge steel decks and robust frames, RedMax is designed to stand the test of time. Full suspension seats with EVC technology will keep the operator comfortable all day, while automatic park brake and hands free deck lift system improve overall efficiency. Available with a full line of accessories for your specific mowing requirements. (CZT54X shown)

Specifications

Model

CZT60x

Category Name

Lawn / Garden

Year

2025

Sale Type

New

Manufacturer

RedMax

Article Number

970 49 75‑02

features

Convenient Service Access

The open chassis design offers excellent service access. Open access on either side of the engine simplifies maintenance.

Roll Over Protection System (ROPS)

The roll over protection system helps protect the user and can be lowered in areas with low-hanging branches.

Kawasaki FX Series engine

The Kawasaki FX series engine is an overhead valve engine with full pressure lubrication and spin-on oil filter. It combines exceptional power and torque with fuel efficiency and reduced emissions. Standard canister air filter for longer service intervals

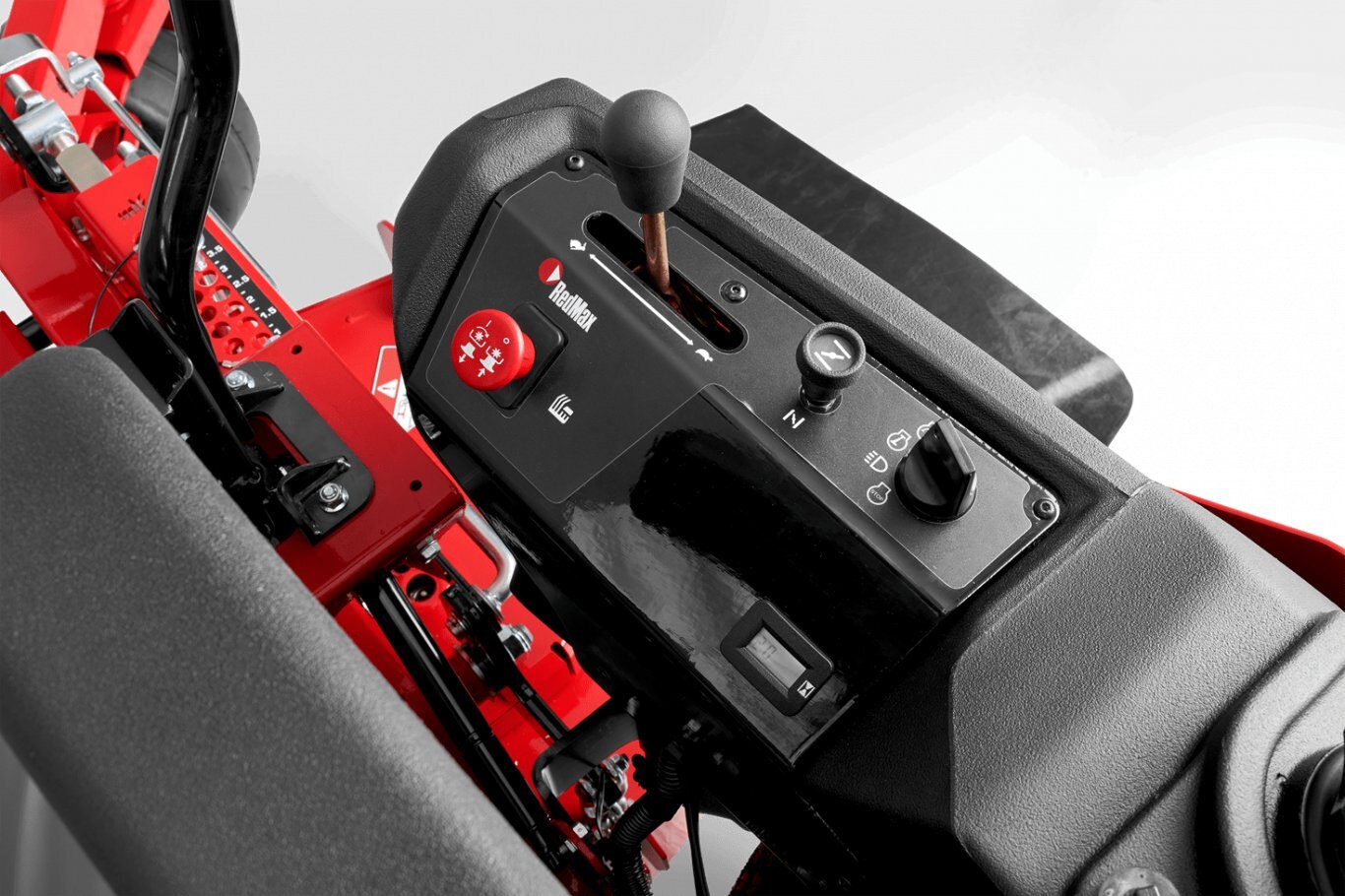

Ergonomic control panel

The ergonomic control panel places everything conveniently at your fingertips.

Heavy Duty Frame

11 Gauge, 2'' x 3'' tube chassis combined with large rear and front tires provide superior strength and improved ride quality.

Convenient Deck Lift System

The robust, pedal-operated deck lift system is spring assited for quick, hands-free operation. Deck height is adjustable to 17 Positions.

Commercial Duty Drive System

The Hydro-Gear ZT-5400 series transmission offers smooth operation and long life durability.

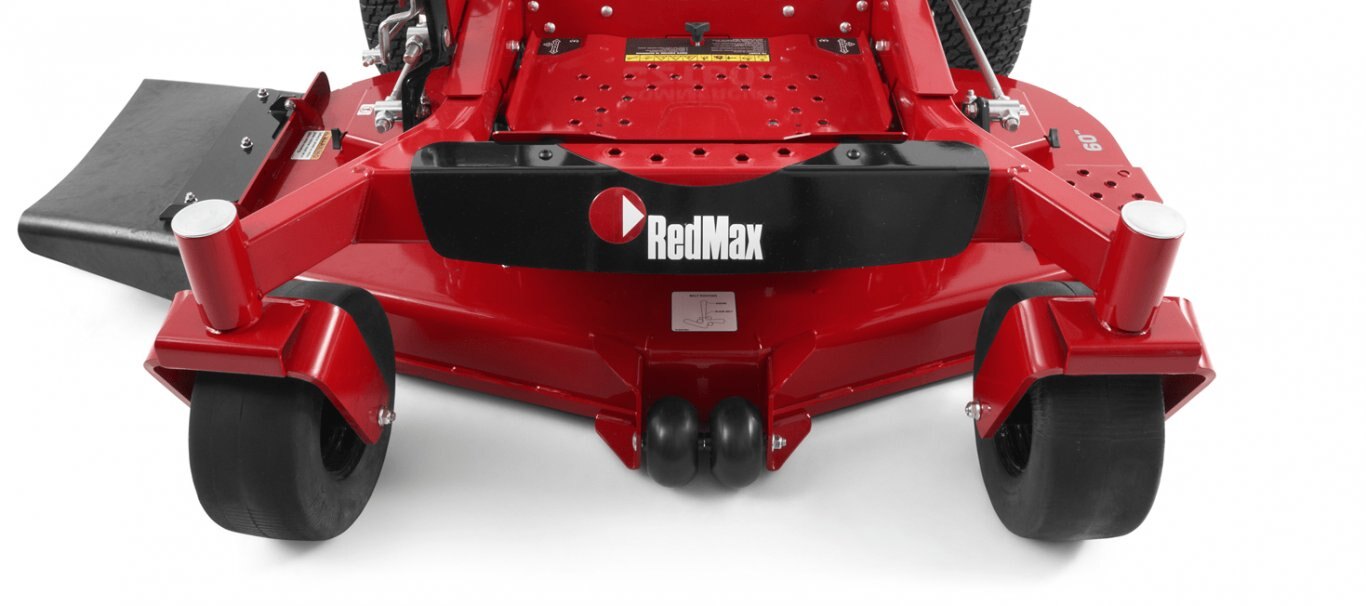

Cutting deck

The combination of 6" deck depth, high-performance blades and optimized deck baffles allows for exceptional cut quality and clipping dispersal. This gives you faster cutting speeds for increased productivity while minimizing missed grass or clumps.

Cast iron spindles

10" diameter cast iron spindles, supported by heavy duty tapered roller bearings give maximum durability and impact resistance.

Adjustable Heavy Duty Clutch

The commercial duty electric clutch is adjustable for wear to prolong the useful life.

Premium Suspension seat

Deep cushions and EVC (elastomeric vibration control) provide unsurpassed comfort for the operator. Additional full suspension system gives a smoother ride on rough terrain during long working hours.

Adjustable steering levers

Steering levers are adjustable for different size operators - ergonomically angled inward for more comfort and can be adjusted to suit your particular style.

Rubber Discharge Shield

The rubber shield is flexible to avoid damage due to accidental impacts

engine

Cylinders

Engine Name

FX Series V-Twin

Engine Cooling

Air

Power/fuel Type

Petrol

Fuel Tank Location

Side (Dual)

Cylinder Displacement

61 cu.inch

Engine Lubrication Type

Full pressure with oil filter

Motor/engine Manufacturer

Kawasaki

Fuel Tank Volume (with Reserve)

10 gal (US)

capacity

Speed Forward Max

12 mph

cutting deck

Blades

3 pcs

Cutting Width

60 in

Deck Thickness

7 gauge

Cutting Methods

Collect/Mulch/Side discharge

Blade Engagement

Electric clutch

Anti-scalp Wheels

Cutting Deck Type

7-gauge fabricated

Cutting Deck Material

Steel

drive system

Transmission Model

ZT 5400

Transmission Manufacturer

Hydro-Gear

equipment

Seat Type

Professional, suspension

Cup Holder

Seat Back Height

High

dimensions

Weight

1342 lbs

Base Machine, Width

53.5 in

Base Machine, Height

46 in

Base Machine, Length

81 in
